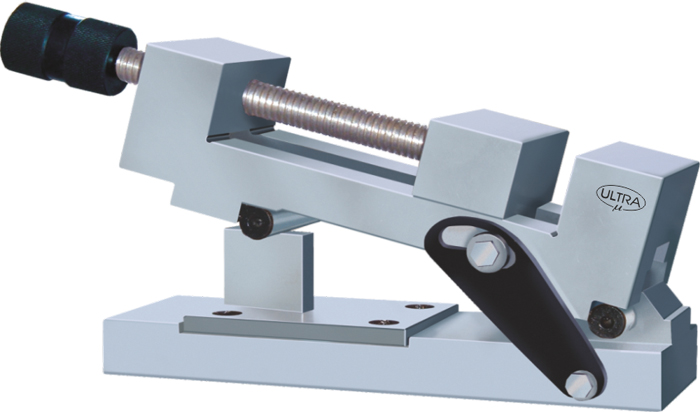

We are Manufacturer, Supplier and Exporter of Sine Vices and our setup is situated in Pune, Maharashtra, India.
- Used for Precision measurement, setting of angles, Right angle grinding & light machining.
- Made from high quality alloy steel.
- Accuracy for Squareness, Flatness & Parallelism is 0.010mm / 235 L
- Angular accuracy within ± 5 seconds.
- Centre distance between rollers is within ± 0.005mm
- Hardness 60 ± 3 Rc
| Cat No. |
Size ( mm ) |
C.D (mm) |
Opening ( mm ) |
| UL-31201 |
190 L x 065 W x 085 H |
100 |
80 |
| UL-31202 |
235 L x 076 W x 100 H |
150 |
100 |
| UL-31203 |
265 L x 095 W x 105 H |
150 |
125 |
| UL-31204 |
290 L x 120 W x 120 H |
200 |
145 |
| UL-31205 |
310 L x 140 W x 145 H |
200 |
160 |
