Electro Permanent Magnetic Lifters / Electro Perm Magnetic Lifters
( Horizontal Lifting )

We are Manufacturer, Supplier and Exporter of Electro Permanent Magnetic Lifters / Electro Perm Magnetic Lifters ( Horizontal Lifting ) and our setup is situated in Pune, Maharashtra, India

Features
  • "ULTRA" Brand EPM lifting magnet is designed with the consideration of all industrial safety Knobs. Therefore, they are very compact light high strength and very reliable and safe in use.
  • Electro Permanent Magnetic lifting is combination of permanent as well as electro magnet power which is required to clamp the job or declamp the job.
  • Lifter plate will not Fall down even during electric power failure because EPM LIFTER required power only for holding the plates & declamping the plates. So, it is 100% safe for handling the plates.
  • Continuous electricity is not required so it having advantage of saving electricity over conventional electromagnetic Lifter.
  • During power failure the system will maintain its status, for e.g. it will hold the plate even during power failure. Enhanced safety feature [ ESF ]
  • Safety interlocks Key to magnetized / demagnetized is provided,
    A) Two Buttons are to be Press Simultaneously Yellow & Green Then only system will be in magnetize condition, this help to avoid chance of Accident.
    B) To off the system again two button need to press simultaneously Yellow & Red.
  • Chain and Hanging Arrangement – made of grade 80 high strength steel along with bull ring.
  • Control Unit Works on input voltage 415 V AC 3 phase. Time requires for On / Off Cycle is In few Seconds.
  • We Also Manufacture ELECTRO Permanent Magnetic Tilting Lifter for Sheets ( Horizontal To Vertical And Vise A Varsa )

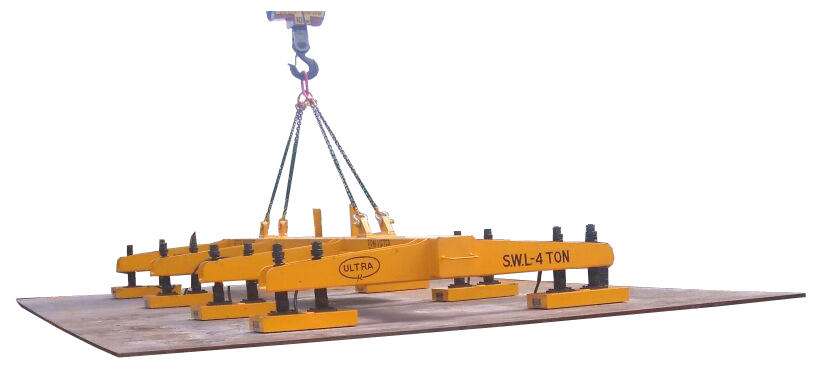

electro-permanent-magnetic-lifters

permanent-magnetic-lifters


Send Enquiry
Specialty
  • Power saving ( Continous electricity is not required )
  • Low maintenance cost.
  • Can be used continuously without any brake.
  • Longer life.
  • Custom made product. ( Design & Lifting Capacity )
Applications
  • Use for Indoor & Outdoor application.
  • For loading / unloading plates from Railway Wagons / trucks.
  • For storing in Plate yards.
  • For feeding plates onto a flame / plasma cutting machine table, one at a time.
  • Can be used with EOT / Gantry / Mobile Cranes etc.
Mode Of Operation Of EPM
1) Electropermanent Magnetic Lifter
  • Lifting Capacity of Each Magnet: Depends
  • Safety Factor – 1: 3 Times
  • Class of Insulation: "H"
  • No. residual magnetic field, Internal Solenoids being protected against shocks by mean of elastic resin.
  • Internal Solenoid is designed and protected against voltage fluctuation.
2) By Radio Remote Control ( Rrc ) Unit.
  • Operation through RRC unit can be done from crane operator’s cabin as well as from ground level / material handling area.
  • 1 Set Radio remote is provided with controller. The range of radio remote is 100 meter ± 10%. ( 1 Set of radio remote consists of 1 No. receiver & 1 Nos. remotes ).
  • Special Key / Switch are provided. This helps to avoid accident.
3) By Master Control Unit.
  • Electronic Control Unit will be used, in case radio remote control ( RRC ) not available to operate for Operation.

Plate Dimensions Plate Thickness Rated Capacity
Length (mm) Width (mm)   (kg in approx)
Min Max Min Max
1500 6300 500 2500 4 - 30 4000
3000 12500 500 3000 4 - 30 9000
3000 12500 500 3500 4 - 30 10500
3000 12500 500 3500 4 - 40 14000
3000 12500 500 3500 4 - 45 16000
