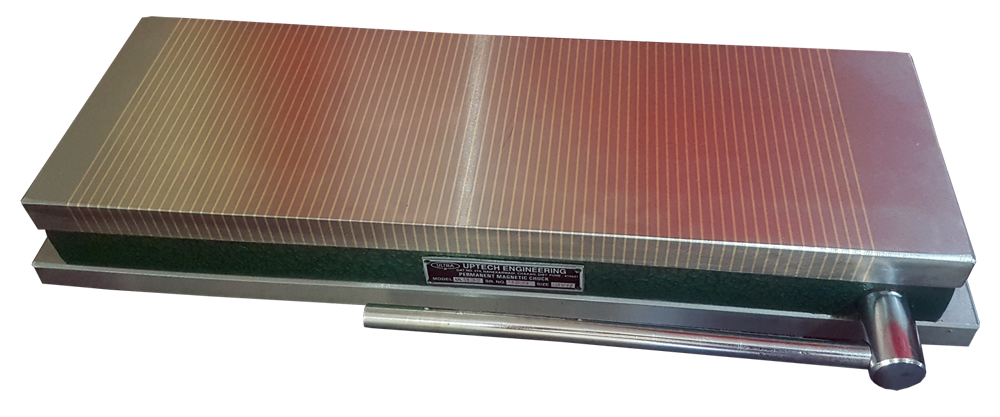

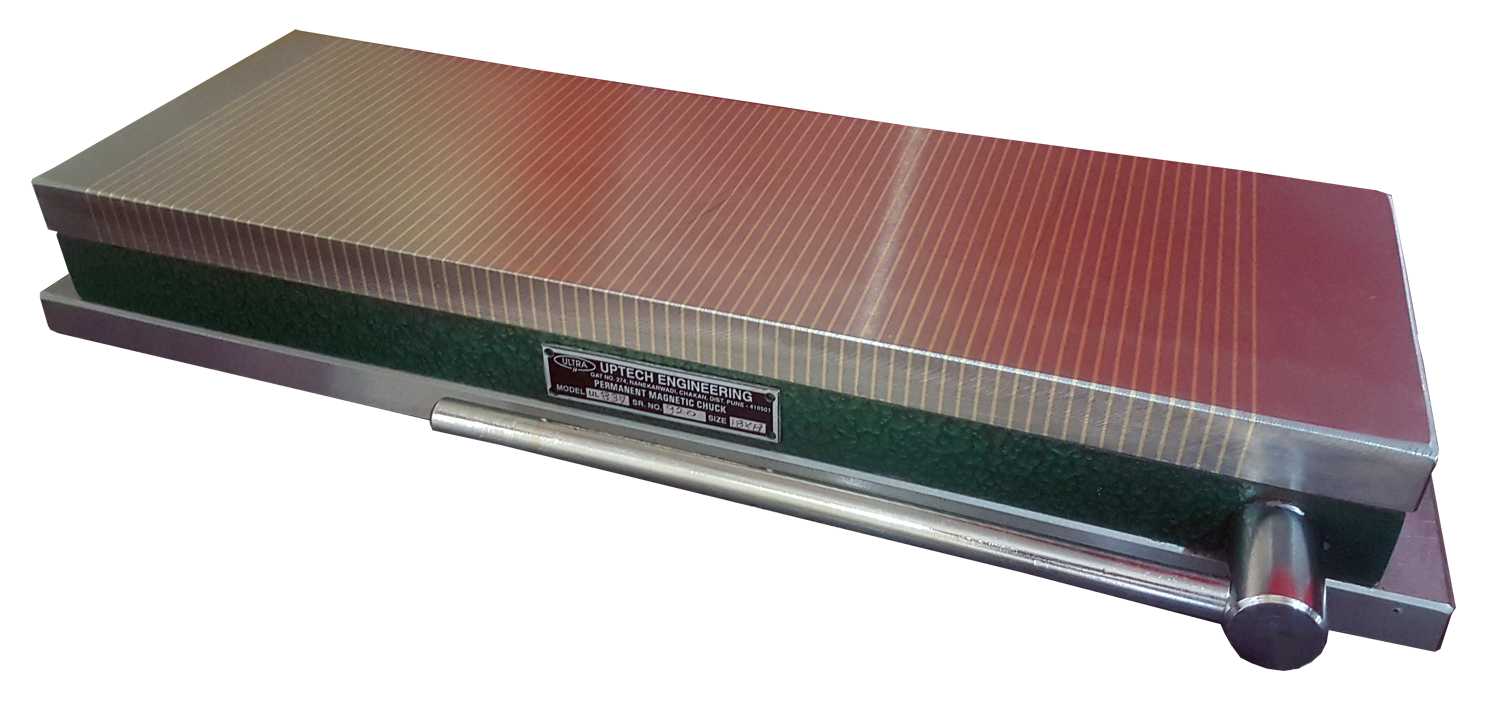

Permanent Magnetic Chucks Fine Pole
We are Manufacturer, Supplier and Exporter of Permanent Magnetic Chucks Fine Pole and our setup is situated in Pune, Maharashtra, India.
- Permanent Magnetic Chucks Through Pole
- Holding device for surface grinding machine, Tool & cutter grinder, Spark erosion
- Machines & also for light milling
- The working face & bootom face are perfectly parallel
- Assembled with powerful magnets
- Poles individually magnetized for full loading power
- Magnetic pull is 40 - 50% more than IS specification
- Better magnetic grip due to close poles
- Suitable to hold thin & small jobs
- Easy operated ON - OFF lever
- Pole Pitch : 9mm & 11mm
Send Enquiry
| Sr. No. |
Cat No. |
Size ( mm ) |
Pole Pitch |
| 1. |
UL - 83701 |
300 L x 150 W |
9 mm |
| 2. |
UL - 83702 |
450 L x 150 W |
9 mm |
| 3. |
UL - 83703 |
300 L x 200 W |
9 mm |
| 4. |
UL - 83704 |
450 L x 200 W |
9 mm |
| 5. |
UL - 83705 |
500 L x 200 W |
9 mm |
| 6. |
UL - 83706 |
600 L x 200 W |
9 mm |
| 7. |
UL - 83707 |
450 L x 250 W |
11 mm |
| 8. |
UL - 83708 |
500 L x 250 W |
11 mm |
| 9. |
UL - 83709 |
600 L x 250 W |
11 mm |
| 10. |
UL - 83710 |
450 L x 300 W |
11 mm |
| 11. |
UL - 83711 |
600 L x 300 W |
11 mm |
| 12. |
UL - 83712 |
750 L x 250 W |
11 mm |
| 13. |
UL - 83713 |
750 L x 300 W |
11 mm |
